Naked
NakedGlobal version

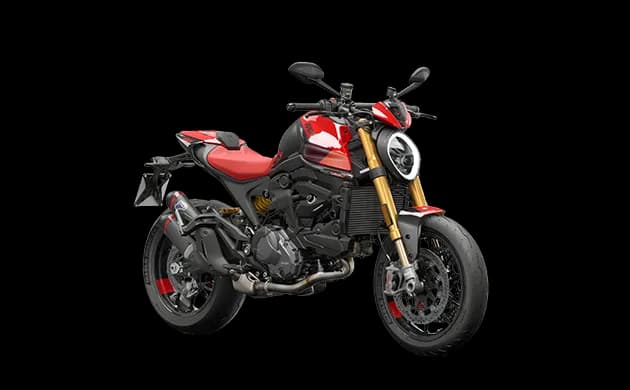

Ducati Monster SPDucati Monster SP
Naked · 937 cc
Manufacturer suggested retail price16,595 USD
- Displacement937 cc
- Maximum power82 kW
- Maximum torque93 Nm
- Weight177 kg
Specifications
Other declared specifications17 items
- Type
- Testastretta 11°, V2 - 90°, 4 valves per cylinder, desmodromic valvetrain, liquid cooled
- Fuel Injection
- Electronic fuel injection system, Ø 53 mm throttle bodies with Ride-by-Wire system
- Exhaust
- Pre-muffler and Termignoni type approved twin muffler, catalytic converter and 2 lambda probes
- Primary drive
- Straight cut gears, ratio 1.85:1
- Ratio
- 1=37/15, 2=30/17, 3=28/20, 4=26/22, 5=24/23, 6=23/24
- Front Wheel
- Light alloy cast, 3.5" x 17"
- Rear Wheel
- Light alloy cast, 5.5" x 17"
- Wheel Travel (Front/Rear)
- 5.5 in / 5.9 in (140 mm / 150 mm)
- Instrumentation
- 4.3" TFT color display
- Number of Seats
- 2
- Safety Equipment
- Riding Modes, Power Modes, Cornering ABS, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light*, Ducati Brake Light
- Standard Equipment
- Ducati Quick Shift, Ducati Power Launch, 4.3" TFT color display, Full LED headlight and lighting system, Dynamic turn indicators*, USB power socket, Flyscreen, Passenger seat cover, Brembo Stylema® calipers, Termignoni type approved twin muffler, Steering damper, Lithium-ion battery
- Ready for
- Ducati Multimedia System, Heated grips
- Warranty
- 24 months, unlimited mileage
- Maintenance Service Intervals
- 9,000 miles (15,000 km) / 24 months
- Valve Clearance Check
- 18,000 miles (30,000 km)
- Notes
- * Please check with your dealer product availability Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information
Engine5 items
- Engine displacement
- 937ccSource wording: 937 cc (57 cu in)
- Bore × stroke
- 94 mm x 67.5 mm
- Compression ratio
- 13.3:1
- Maximum power
- 82kWSource wording: 111 hp (82 kW) @ 9,250 rpm
- Maximum torque
- 93NmSource wording: 69 lb ft (93 Nm, 9.5 kgm) @ 6,500 rpm
Fuel and transmission4 items
- Transmission
- 6 speed with Ducati Quick Shift up/down
- Final drive
- Chain, front sprocket z15, rear sprocket z43
- clutch
- Slipper and self-servo multiplate wet clutch with hydraulic control
- Fuel tank capacity
- 14LSource wording: 3.7 US gal (14 l)
Chassis, brakes and suspension9 items
- Frame
- Aluminum alloy Front Frame
- Front suspension
- Fully adjustable Öhlins NIX 30 Ø 43 mm usd front fork with TiN treatment on inner tube
- Front tyre
- Pirelli Diablo Rosso IV 120/70 ZR17
- Rear suspension
- Progressive linkage, fully adjustable Öhlins monoshock, aluminum double-sided swingarm
- Rear tyre
- Pirelli Diablo Rosso IV 180/55 ZR17
- Front brake
- 2 x Ø 320 mm semi-floating aluminum flange discs, radially mounted Brembo Stylema® monobloc 4-piston calipers, radial master cylinder, Cornering ABS
- Rear brake
- Ø 245 mm disc, Brembo 2-piston floating caliper, Cornering ABS
- Steering angle
- 23°
- Trail
- 87mmSource wording: 3.4 in (87 mm)
Dimensions and weight3 items
- Weight without fuel
- 177kgSource wording: 390 lb (177 kg)
- Seat height
- 840mmSource wording: 33.1 in (840 mm) 33.5 in (850 mm) with high seat accessory 31.9 in (810 mm) with low seat accessory
- Wheelbase
- 1472mmSource wording: 57.9 in (1,472 mm)
Sources
Specifications can vary by model year, country and variant.
