Adventure
AdventureGlobal version

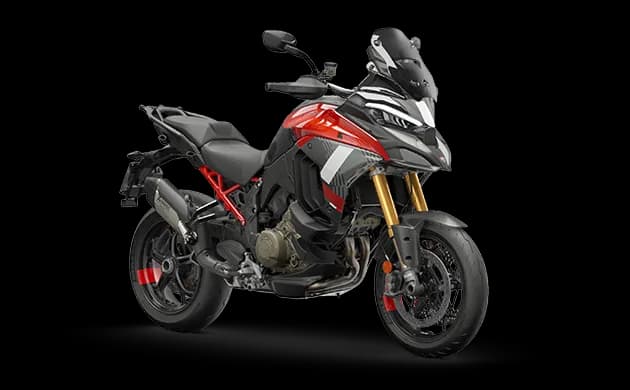

Ducati Multistrada V4Ducati Multistrada V4
Adventure · 1158 cc
Manufacturer suggested retail price19,995 USD
- Displacement1158 cc
- Maximum power125 kW
- Maximum torque124 Nm
- Weight229 kg
Specifications
Other declared specifications17 items
- Type
- Ducati V4 Granturismo, V4 - 90°, 4 valves per cylinder, counter-rotating crankshaft, twin pulse firing order, semi dry sump, liquid cooled
- Fuel Injection
- Continental electronic fuel injection system, Øeq 46mm equivalent elliptical throttle bodies with Ride-by-Wire system
- Exhaust
- Stainless steel muffler, double catalytic converter
- Primary drive
- Straight cut gears; Ratio 1.8:1
- Ratio
- 1=40/13, 2=36/16, 3=34/19, 4=31/21, 5=29/23, 6=27/25
- Front Wheel
- Light alloy cast, 3" x 19"
- Rear Wheel
- Light alloy cast, 4.5" x 17"
- Wheel Travel (Front/Rear)
- 170 mm / 180 mm (6.7 in / 7.1 in)
- Instrumentation
- 5" TFT color display
- Number of Seats
- 2
- Safety Equipment
- Riding Mode, Power Mode, ABS Cornering, Ducati Traction Control, Ducati Wheelie Control, Ducati Cornering Light, Vehicle Hold Control, Daytime Running Light*, Ducati Brake Light EVO
- Standard Equipment
- Ducati Quick Shift, Cruise control, Backlit handlebar switches, 5" TFT color display, Full LED headlight
- Warranty
- 24 months, unlimited mileage
- Annual Service
- 12 months
- Oil Service
- 9,000 miles (15,000 km) / 24 months
- Valve Clearance Check
- 37,000 miles (60,000 km)
- Notes
- * Please check with your dealer product availability Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information
Engine5 items
- Engine displacement
- 1158ccSource wording: 1,158 cc (71 cu in)
- Bore × stroke
- 83 x 53.5 mm
- Compression ratio
- 14:1
- Maximum power
- 125kWSource wording: 170 hp (125 kW ) @ 10,750 rpm
- Maximum torque
- 124NmSource wording: 91 lb-ft (124 Nm) @ 9,000 rpm
Fuel and transmission4 items
- Transmission
- 6 speed with Ducati Quick Shift up/down
- Final drive
- Chain, Front sprocket Z16; Rear sprocket Z42
- clutch
- Multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run
- Fuel tank capacity
- 22LSource wording: 5.8 US gal (22 l)
Chassis, brakes and suspension9 items
- Frame
- Aluminum monocoque frame
- Front suspension
- Ø 50 mm fully adjustable USD mechanical fork, compression and rebound damping manual adjustment
- Front tyre
- Pirelli Scorpion Trail II 120/70 ZR 19
- Rear suspension
- Fully adjustable monoshock, Remote spring preload adjustment, aluminum double-sided swingarm, automatic fast lowering device between 6 mph and 30 mph, aluminum double-sided swingarm
- Rear tyre
- Pirelli Scorpion Trail II 170/60 ZR 17
- Front brake
- 2 x Ø 320 mm semi-floating discs, radially mounted Brembo monobloc 4-piston 2-pad calipers, radial master cylinder, Cornering ABS
- Rear brake
- Ø 280 mm disc, Brembo 2-piston floating caliper, Cornering ABS
- Steering angle
- 24.2°
- Trail
- 100.6mmSource wording: 4.0 in (100.6 mm)
Dimensions and weight3 items
- Weight without fuel
- 229kgSource wording: 505 lb (229 kg)
- Seat height
- 840mmSource wording: Adjustable, 33.1 in - 33.9 in (840 mm - 860 mm) 34.3 in - 35.0 in (870 mm - 890 mm) with high foam seat accessory 33.7 in - 34.4 in (855 mm - 875 mm) with mid/high foam seat accessory 31.9 in - 32.7 in (810 mm - 830 mm) with low foam seat accessory
- Wheelbase
- 1566mmSource wording: 61.7 in (1,566 mm)
Sources
Specifications can vary by model year, country and variant.
