Trail and enduro
1 / 2Kawasaki KLX230 S ABS

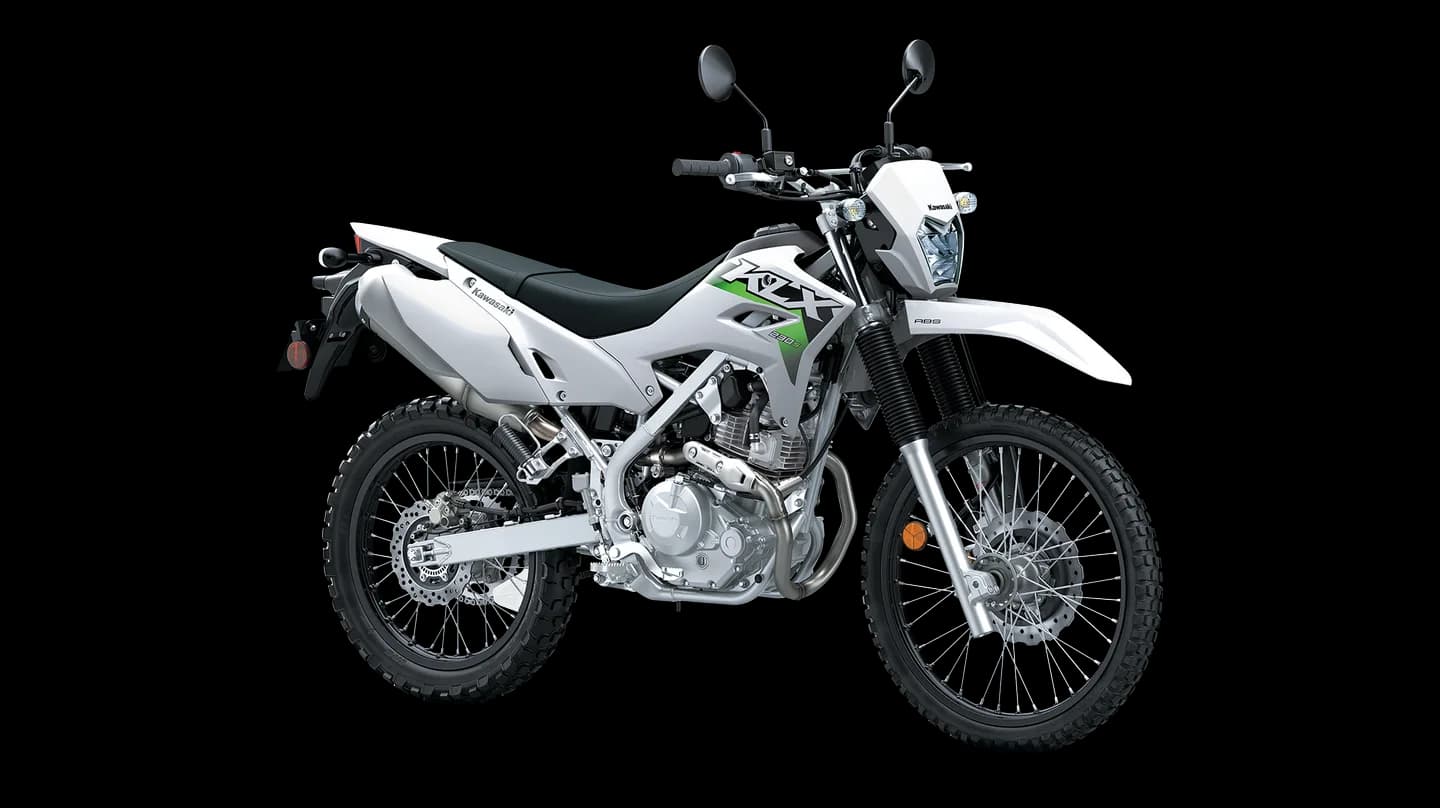

Kawasaki KLX230 S ABS
Trail and enduro · 233 cc
Manufacturer suggested retail priceFrom 5,499 USD
- Displacement233 cc
- Maximum power17 hp
- Maximum torque18.03 Nm
- Weight131.95 kg
Specifications
Engine9 items
- Engine configuration
- 4-stroke single, SOHC, air-cooled
- Engine displacement
- 233ccSource wording: 233cc
- Bore × stroke
- 67.0 x 66.0mm
- Compression ratio
- 9.4:1
- Maximum power
- 17hpSource wording: 17 hp¹ @ 8,000 rpm
- Maximum torque
- 18.03NmSource wording: 13.3 lb-ft @ 6,400 rpm
- Fuel system
- DFI® with 32mm throttle body
- Ignition
- TCBI with Electronic Advance
- Cooling system
- Air-cooledSource wording: 4-stroke single, SOHC, air-cooled
Fuel and transmission3 items
- Transmission
- 6-speed
- Final drive
- Sealed chain
- Fuel tank capacity
- 7.57LSource wording: 2.0 gal
Equipment3 items
- Rider aids
- Anti-lock Brake System (ABS)
- Equipment
- ERGO-FIT®, LCD Instrumentation with Smartphone Connectivity via RIDEOLOGY THE APP MOTORCYCLE
- Available colours
- Lime Green, Bright White
Chassis, brakes and suspension8 items
- Front suspension
- 37mm telescopic fork/7.9 in
- Rear suspension
- New Uni-Trak® linkage system and single shock with adjustable spring preload/8.8 in
- Front tyre
- 2.75 x 21
- Rear tyre
- 4.10 x 18
- Front brake
- Single 265mm petal disc with a dual-piston caliper and ABS
- Rear brake
- Single 220mm petal disc with single-piston caliper and ABS
- Frame
- Perimeter, high-tensile steel
- Steering angle / trail
- 24.6°/3.8 in
Dimensions and weight8 items
- Length
- 2080.26mmSource wording: 81.9 in
- Width
- 845.82mmSource wording: 33.3 in
- Height
- 1140.46mmSource wording: 44.9 in
- Ground clearance
- 238.76mmSource wording: 9.4 in
- Seat height
- 845.82mmSource wording: 33.3 in
- Dry weight
- 124.96kgSource wording: 275.5 lb** 50-State Model; 273.4 lb** 49-State Model
- Ready-to-ride weight
- 131.95kgSource wording: 290.9 lb* 50-State Model; 288.9 lb* 49-State Model
- Wheelbase
- 1363.98mmSource wording: 53.7 in
Sources
Specifications can vary by model year, country and variant.
