Adventure
1 / 3KTM 690 RALLY

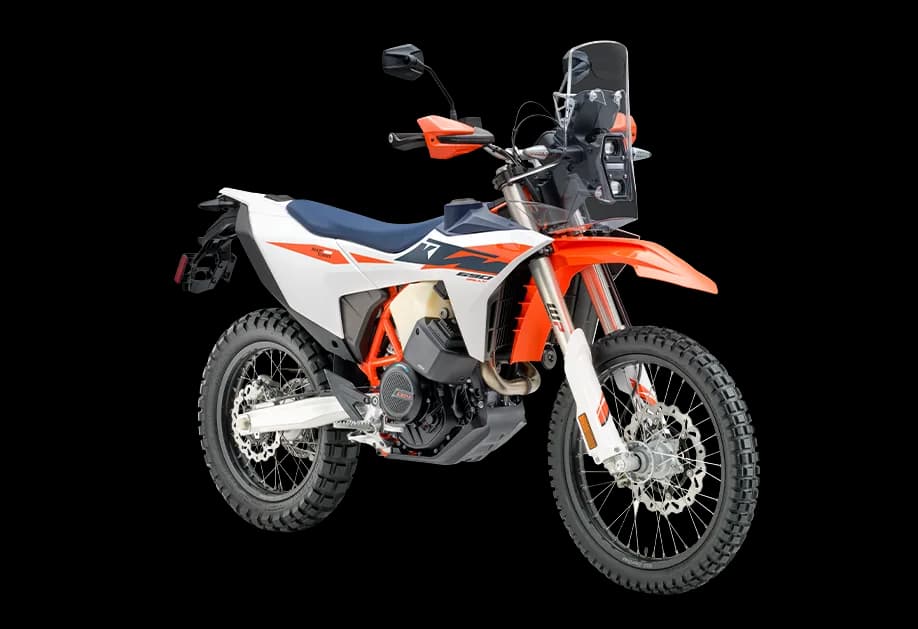

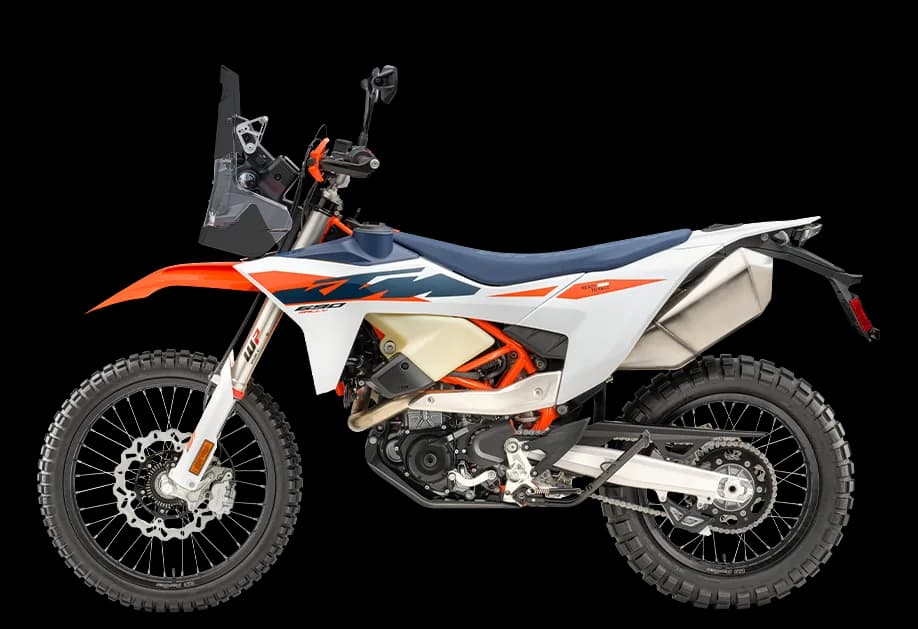

KTM 690 RALLY
Adventure · 692.7 cc
PriceNot recorded
- Displacement692.7 cc
- Maximum torque73 Nm
- Weight161.5 kg
- Seat height935 mm
Specifications
Engine8 items
- Engine configuration
- 1-cylinder, 4-stroke engine
- Engine displacement
- 692.7ccSource wording: 692.7 cm³
- Maximum power (as stated in source)
- 79 PS
- Maximum torque
- 73Nm
- Cooling system
- Liquid cooled
- Number of cylinders
- Single cylinder
- Engine management
- Keihin EMS with RBW, twin ignition
- Engine oil
- Motorex Power Synth SAE 10W-50
Fuel and transmission5 items
- Transmission
- 6-speed
- CO₂ emissions
- 99 g/km
- Final drive
- 520 X-Ring
- Fuel tank capacity
- 20L
- Fuel tank capacity (as stated in source)
- 5.28 US gal
Other declared specifications7 items
- Engine stroke
- 4-Stroke
- Silencer
- Stainless steel primary and secondary silencer
- Brake disc diameters (front/rear)
- 300 / 240 mm
- Rear subframe design
- Self-supporting plastic tank
- Front suspension addition
- Compression, rebound
- Rear suspension adjustment
- Compression (high and low speed), rebound and preload adjustment
- Wheelbase tolerance
- 0.59 inch
Chassis, brakes and suspension7 items
- Front brake
- Brembo twin-piston floating caliper, brake disc
- Rear brake
- Brembo single-piston floating caliper, brake disc
- Frame
- Chromium-Molybdenum steel trellis frame, powder coated
- Steering angle
- 62.3 °
- Trail
- 121mm
- Front suspension
- WP XPLOR-USD, Ø 48 mm
- Rear suspension
- WP XPLOR with Pro-Lever linkage
Dimensions and weight3 items
- Seat height
- 935mm
- Ground clearance
- 265mm
- Weight without fuel
- 161.5kg
Sources
Specifications can vary by model year, country and variant.
