Supermoto
1 / 2Suzuki DR-Z4SM

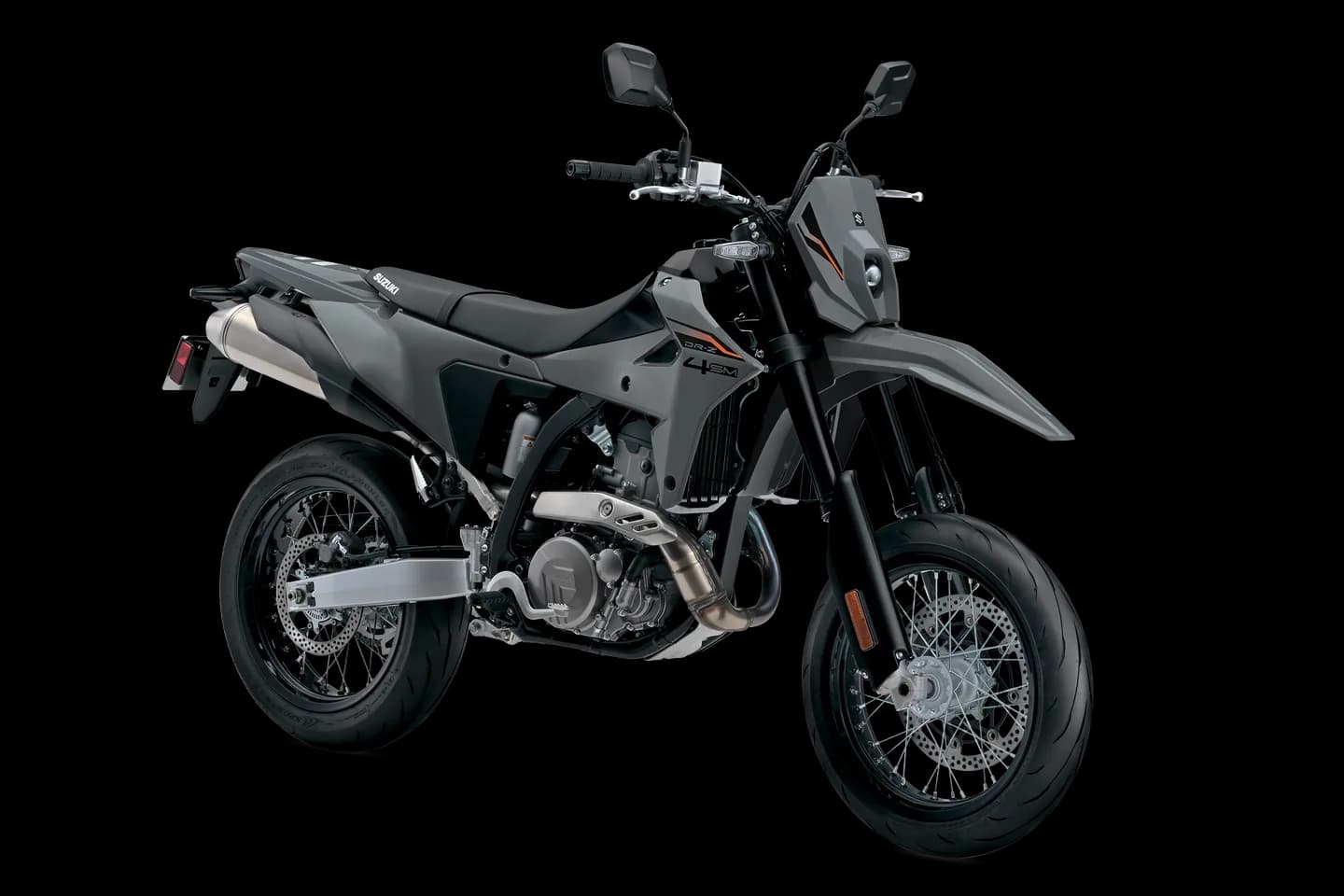

Suzuki DR-Z4SM
Supermoto · 398 cc
Manufacturer suggested retail price7,999 USD
- Displacement398 cc
- Weight154 kg
- Seat height890 mm
- Fuel tank8.7 L
Specifications
Engine9 items
- Engine configuration
- 398cc, 4-stroke, liquid-cooled, single cylinder, DOHC
- Bore × stroke
- 90.0 mm x 62.6 mm (3.5 in. x 2.5 in.)
- Compression ratio
- 11.1:1
- Fuel system
- Fuel injection, 42 mm throttle body with 10-hole injector
- Starting
- Electric
- Lubrication
- Semi-dry sump
- Ignition
- Electronic ignition
- Engine displacement
- 398ccSource wording: 398cc, 4-stroke, liquid-cooled, single cylinder, DOHC
- Cooling system
- Liquid-cooledSource wording: 398cc, 4-stroke, liquid-cooled, single cylinder, DOHC
Fuel and transmission4 items
- clutch
- Wet multi-plate, SCAS-equipped
- Transmission
- 5-speed constant mesh
- Final drive
- Sealed O-ring type chain
- Fuel tank capacity
- 8.7LSource wording: 8.7 L (2.3 US gal.)
Chassis, brakes and suspension6 items
- Front suspension
- KYB-supplied, inverted, telescopic fork with coil spring, oil damped, and adjustable compression/rebound damping force. Travel: (260mm / 10.2 in.)
- Rear suspension
- KYB-supplied, link type, coil spring, oil damped shock absorber, with adjustable spring preload and compression/rebound damping force. Travel: (277 mm / 10.9 in.)
- Front brake
- Disc brake, single 310 mm diameter stainless steel rotor
- Rear brake
- Disc brake, single 240 mm diameter stainless steel rotor
- Front tyre
- 120/70R17 M/C (58H), tube type
- Rear tyre
- 140/70R17 M/C (66H), tube type
Equipment3 items
- Available colours
- Sky Gray (Q1T) -or- Solid Iron Gray (YUD)
- Headlight
- Bifunction LED
- Taillight
- LED
Other declared specifications3 items
- Spark Plug
- Iridium type (x 2)
- Warranty
- 12-month unlimited mileage limited warranty.
- Extension
- Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP)
Dimensions and weight7 items
- Length
- 2195mmSource wording: 2195 mm (86.4 in.)
- Width
- 885mmSource wording: 885 mm (34.8 in.)
- Height
- 1190mmSource wording: 1190 mm (46.9 in.)
- Wheelbase
- 1465mmSource wording: 1465 mm (57.7 in.)
- Ground clearance
- 260mmSource wording: 260 mm (10.2 in.)
- Seat height
- 890mmSource wording: 890 mm (35.0 in.)
- Ready-to-ride weight
- 154kgSource wording: 154 kg (340 lb.)
Sources
Specifications can vary by model year, country and variant.
