Trail and enduro
1 / 2Suzuki DR-Z50

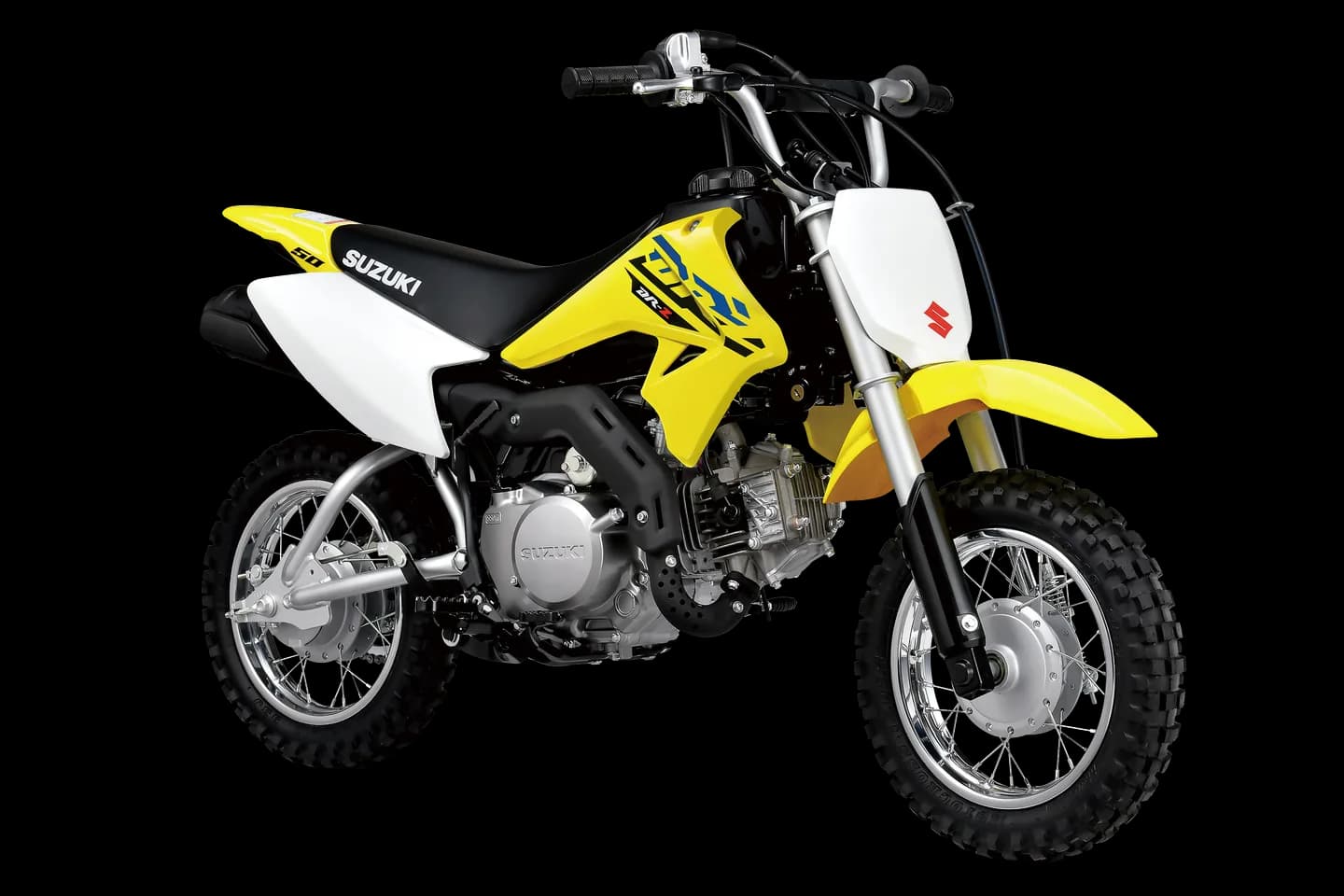

Suzuki DR-Z50
Trail and enduro · 49 cc
Manufacturer suggested retail price2,599 USD
- Displacement49 cc
- Weight54 kg
- Seat height560 mm
- Fuel tank3 L
Specifications
Engine9 items
- Engine configuration
- 49cc, 4-stroke, air-cooled, single cylinder, OHC
- Bore × stroke
- 39.0 mm x 41.8 mm (1.53 in. x 1.64 in.)
- Compression ratio
- 9.7:1
- Fuel system
- Mikuni VM13, single carburetor
- Starting
- Electric with back-up primary kickstarter
- Lubrication
- Wet sump
- Ignition
- Electronic ignition (CDI)
- Engine displacement
- 49ccSource wording: 49cc, 4-stroke, air-cooled, single cylinder, OHC
- Cooling system
- Air-cooledSource wording: 49cc, 4-stroke, air-cooled, single cylinder, OHC
Fuel and transmission4 items
- clutch
- Automatic clutch
- Transmission
- 3-speed constant mesh
- Final drive
- Chain, DID 428DS, 78 links
- Fuel tank capacity
- 3LSource wording: 3.0 L (0.8 US gal.)
Chassis, brakes and suspension6 items
- Front suspension
- Inverted telescopic, coil spring
- Rear suspension
- Swingarm type, coil spring, oil damped
- Front brake
- Drum brake
- Rear brake
- Drum brake
- Front tyre
- 2.50 – 10 33J, tube type
- Rear tyre
- 2.50 – 10 33J, tube type
Equipment1 items
- Available colours
- Champion Yellow No. 2
Other declared specifications3 items
- Spark Plug
- NGK CR7HSA or DENSO U22FSR-U
- Warranty
- 6-month limited warranty
- Extension
- Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP)
Dimensions and weight7 items
- Length
- 1320mmSource wording: 1320 mm (52.0 in.)
- Width
- 580mmSource wording: 580 mm (22.8 in.)
- Height
- 790mmSource wording: 790 mm (31.1 in.)
- Wheelbase
- 935mmSource wording: 935 mm (36.8 in.)
- Ground clearance
- 135mmSource wording: 135 mm (5.3 in.)
- Seat height
- 560mmSource wording: 560 mm (22.0 in.)
- Ready-to-ride weight
- 54kgSource wording: 54 kg (119 lb.)
Sources
Specifications can vary by model year, country and variant.
