1 / 2Suzuki GSX250R ABS

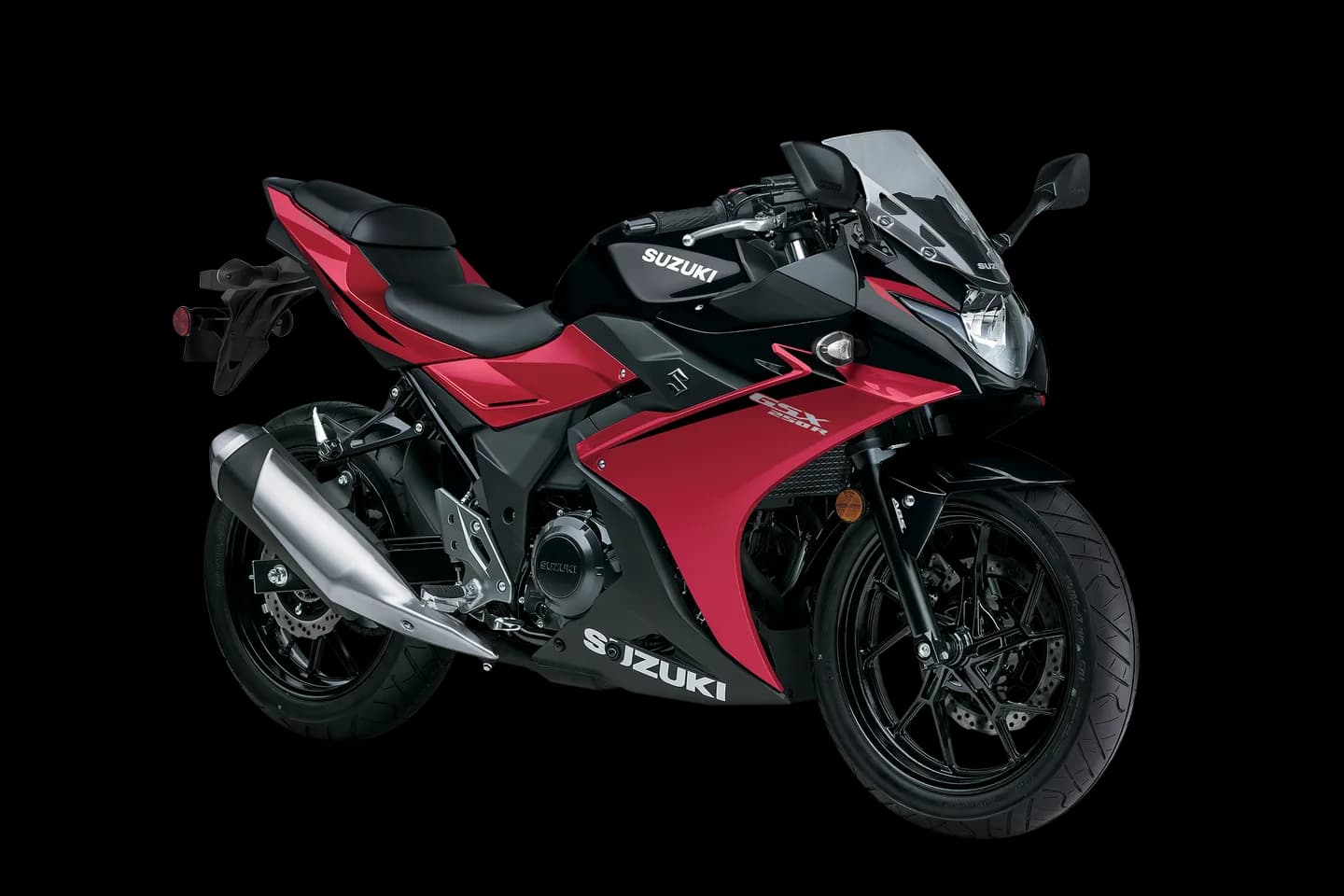

Suzuki GSX250R ABS
Sport · 248 cc
Manufacturer suggested retail price5,149 USD
- Displacement248 cc
- Weight181 kg
- Seat height790 mm
- Fuel tank15 L
Specifications
Engine9 items
- Engine configuration
- 248cc, 4-stroke, liquid-cooled, SOHC, parallel-twin
- Bore × stroke
- 53.5 mm x 55.2 mm (2.10 in. x 2.17 in.)
- Compression ratio
- 11.5:1
- Fuel system
- Fuel injection with SDTV
- Starting
- Electric
- Lubrication
- Wet sump
- Ignition
- Electronic ignition (transistorized)
- Engine displacement
- 248ccSource wording: 248cc, 4-stroke, liquid-cooled, SOHC, parallel-twin
- Cooling system
- Liquid-cooledSource wording: 248cc, 4-stroke, liquid-cooled, SOHC, parallel-twin
Fuel and transmission4 items
- clutch
- Wet, multi-plate type
- Transmission
- 6-speed constant mesh
- Final drive
- Chain, sealed O-ring type, DID 520VF or RK 520KRO, 116 links
- Fuel tank capacity
- 15LSource wording: 15 L (4.0 US gal.)
Chassis, brakes and suspension6 items
- Front suspension
- Telescopic, coil spring, oil damped
- Rear suspension
- Single shock, coil spring, oil damped
- Front brake
- Nissin, 2-piston caliper, single disc, ABS-equipped
- Rear brake
- Nissin, 1-piston caliper, single disc, ABS-equipped
- Front tyre
- 110/80-17M/C (57H), tubeless
- Rear tyre
- 140/70-17M/C (66H), tubeless
Equipment3 items
- Available colours
- Metallic Diamond Red / Pearl Nebular Black
- Headlight
- 12V 55/60W (H4 halogen) and LED position lights
- Taillight
- LED
Dimensions and weight7 items
- Length
- 2085mmSource wording: 2085 mm (82.1 in.)
- Width
- 740mmSource wording: 740 mm (29.1 in.)
- Height
- 1110mmSource wording: 1110 mm (43.7 in.)
- Wheelbase
- 1430mmSource wording: 1430 mm (56.3 in.)
- Ground clearance
- 160mmSource wording: 160 mm (6.3 in.)
- Seat height
- 790mmSource wording: 790 mm (31.1 in.)
- Ready-to-ride weight
- 181kgSource wording: 181 kg (399.0 lb.) ABS-equipped
Other declared specifications2 items
- Warranty
- 12-month unlimited mileage limited warranty
- Extension
- Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP)
Sources
Specifications can vary by model year, country and variant.
