Scooter
1 / 3Yamaha XMAX 300 Tech MAX+

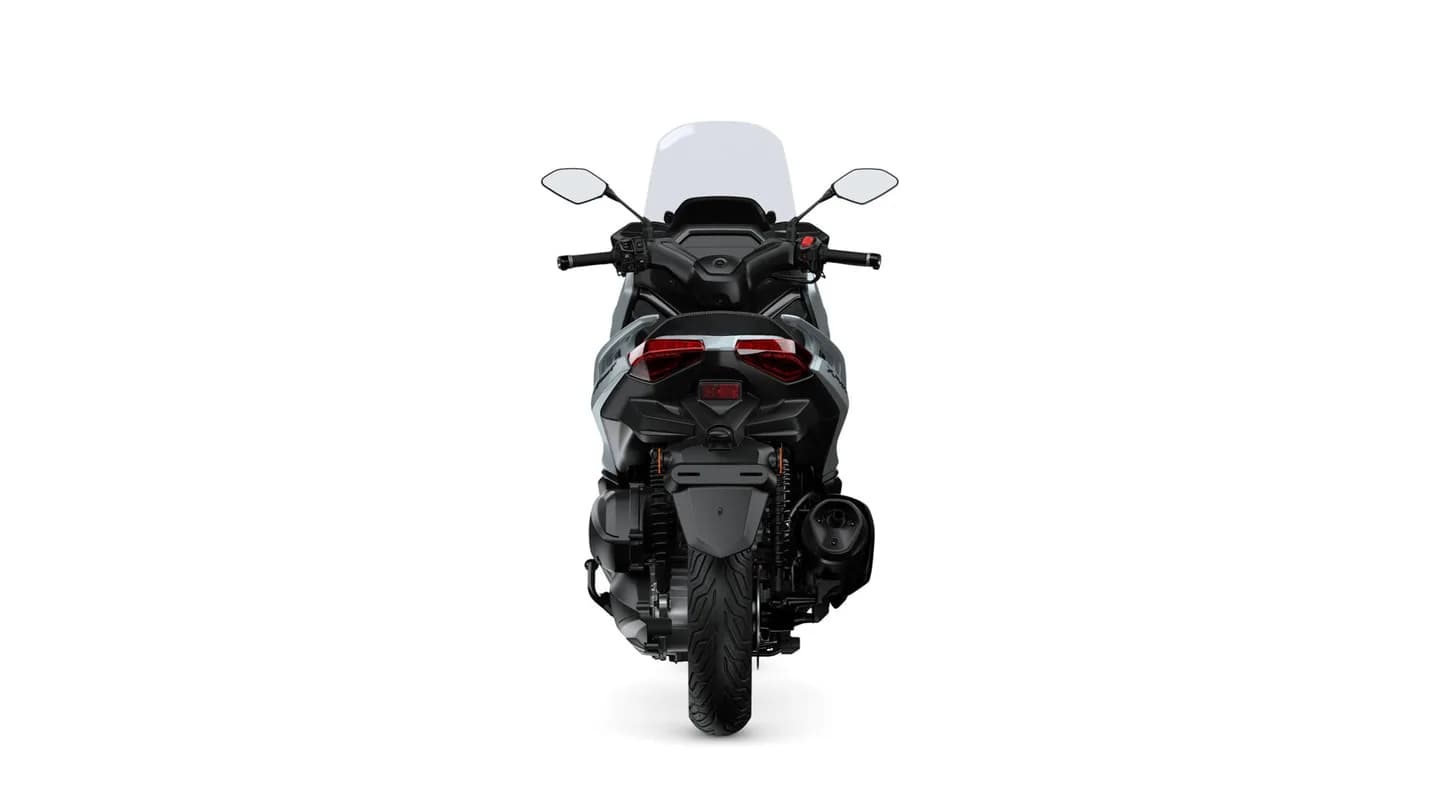

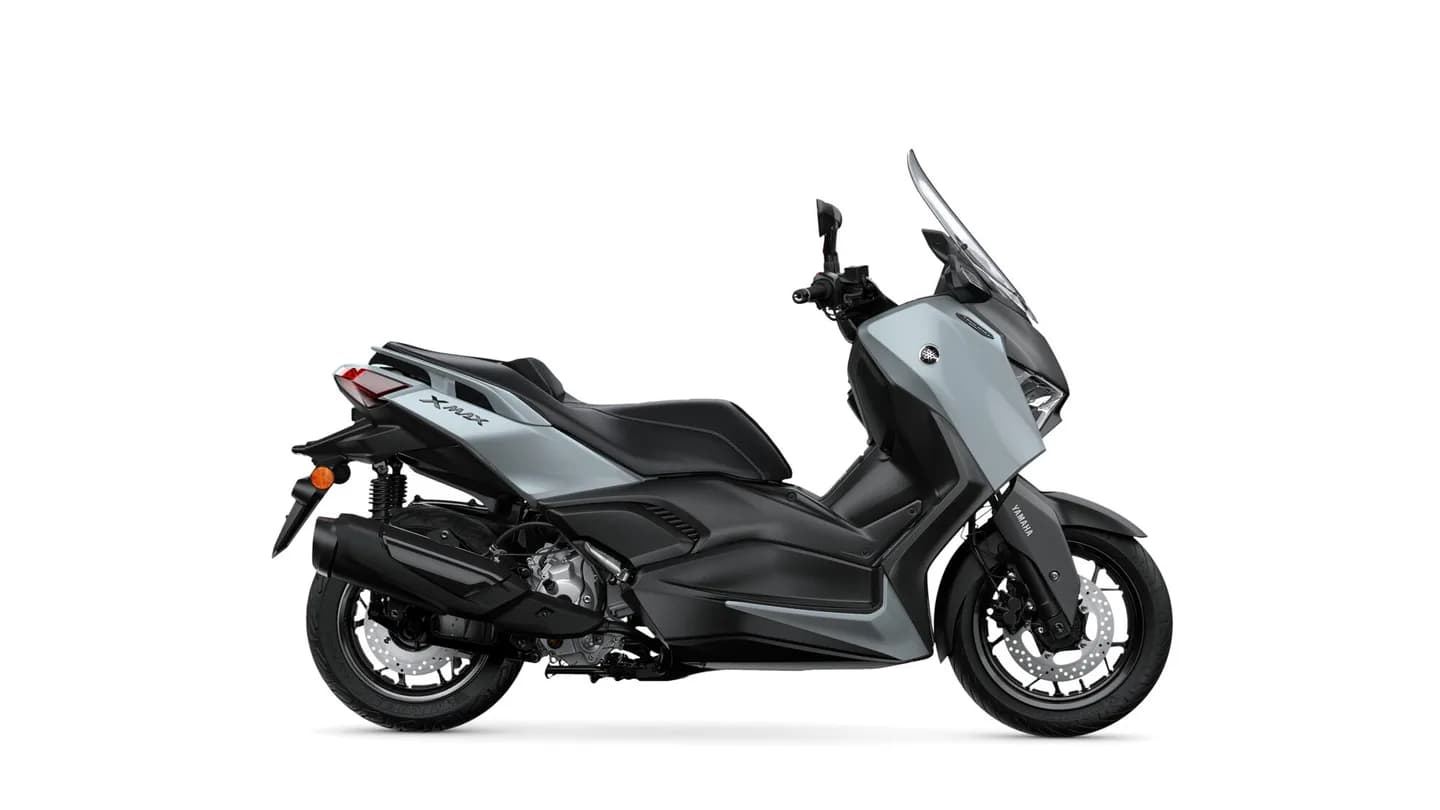

Yamaha XMAX 300 Tech MAX+
Scooter · 292 cc
PriceNot recorded
- Displacement292 cc
- Maximum power20.6 kW
- Maximum torque28.9 Nm
- Weight187 kg
Specifications
Engine11 items
- Engine configuration
- 4-stroke, Liquid-cooled, SOHC, 4-valves, Single cylinder
- Engine displacement
- 292ccSource wording: 292cc
- Bore × stroke
- 70.0 × 75.9 mm
- Compression ratio
- 10.9:1
- Maximum power
- 20.6kWSource wording: 20.6 kW @ 7,250 rpm
- Maximum torque
- 28.9NmSource wording: 28.9 Nm @ 5,750 rpm
- Lubrication
- Wet sump
- Fuel system
- Fuel Injection
- Ignition
- TCI
- Starting
- Electric
- Cooling system
- Liquid-cooledSource wording: 4-stroke, Liquid-cooled, SOHC, 4-valves, Single cylinder
Fuel and transmission3 items
- Transmission
- V-Belt Automatic
- Declared fuel consumption
- 3.3L/100km
- Fuel tank capacity
- 13LSource wording: 13L
Other declared specifications10 items
- CO2 emission
- 76g/km
- Front suspension system
- Telescopic fork
- Front travel
- 110 mm
- Rear suspension system
- Unit Swing
- Rear Travel
- 79 mm
- Minimum ground clearance
- 135 mm
- Screen type
- TFT
- Screen size
- 4.2-inch
- Smartphone Connectivity
- MyRide
- On-screen Navigation
- Garmin StreetCross
Chassis, brakes and suspension4 items
- Front brake
- Hydraulic single disc, Ø267 mm (ABS)
- Rear brake
- Hydraulic single disc, Ø245 mm (ABS)
- Front tyre
- 120/70-15
- Rear tyre
- 140/70-14
Dimensions and weight6 items
- Length
- 2180mm
- Width
- 800mm
- Height
- 1410mmSource wording: 1410 mm - 1505 mm (adjustable windscreen)
- Seat height
- 795mm
- Wheelbase
- 1540mm
- Ready-to-ride weight
- 187kg
Sources
Specifications can vary by model year, country and variant.
